MULTI-FUNCTION SWITCH 多功能開關

Joystick potentiometer

TM-2020

操縱桿電位器 FEATURE ? 20.00mm*20.00mm ? Slide on the 2D flat ? Integrated tact switch APPLICATIONS ? Digital cameras, MP3|MP4, automobiles, health care products, robots and industrial machinery, game consoles, drones.

檔案下載產品詢價

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
全阻值/Total resistance	10KA
額定功率/Rated power	0.0125W
工作電流/Working current	50MA DC12V
滑柄行程/Slide stroke	2mm
操作力距/Operating torque	60±20gf
壽命/life	1000000 Times

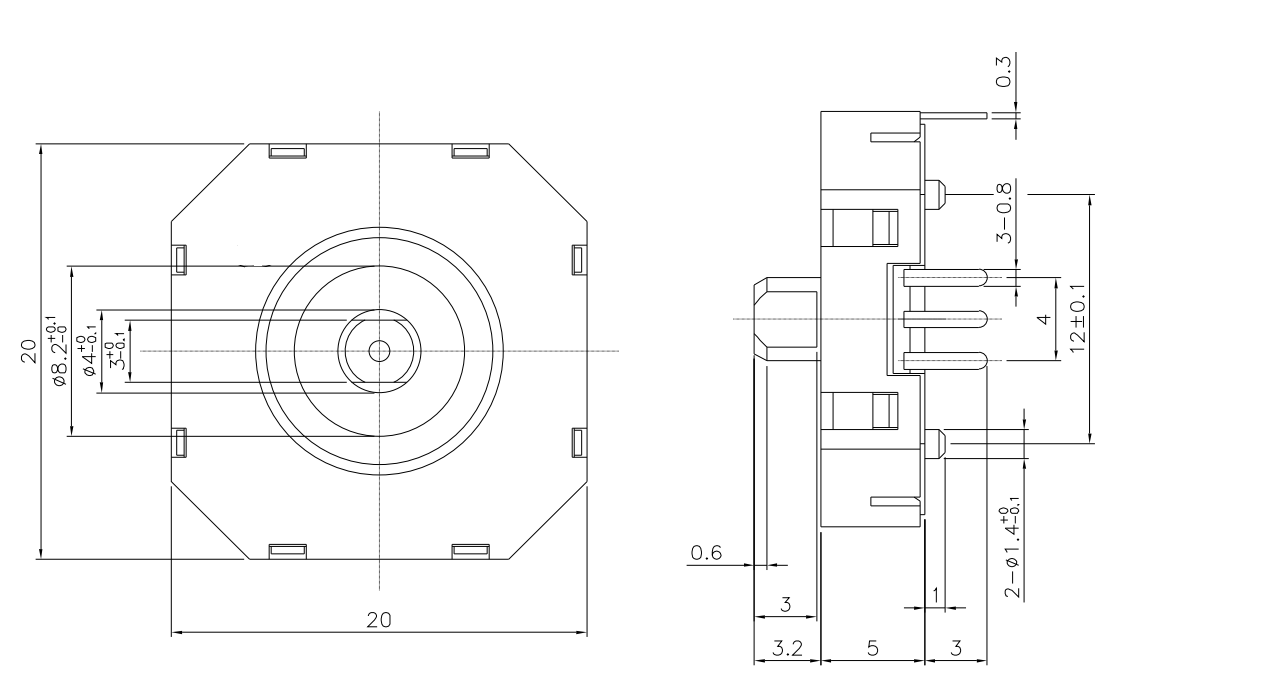

DIMENSIONS

Unit:mm

Model	Dimensions
TM-2020
