USB 2.0 /3.0 SOCKET TYPE-C

USB 3.1 TYPE-C

TYPE-CF-W-16P-RAT-N

TYPE-CF-W-16P-RAT-N FEATURE ? 8.64mm*7.90mm ? 90 degrees SMD ?Reflow soldering APPLICATIONS ? Used in mobile, audio-visual, automotive electronics, multimedia, electrical appliances, Electronic toys visible interphone MP3, MP4, DVD

檔案下載產(chǎn)品詢價(jià)

產(chǎn)品說明

COMMON SPECIFICATIONS

Characteristics	Specification
額定電流/Current Rating	5A
額定電壓/Voltage Rating	AC 100V/minute
接觸電阻/Contact Resistance	40 millionhm max
尺寸/Dimension	8.64mm*7.90mm
溫度/temperature range	-30℃~85℃
絕緣電阻/Insulation Resistance	100 megohms min

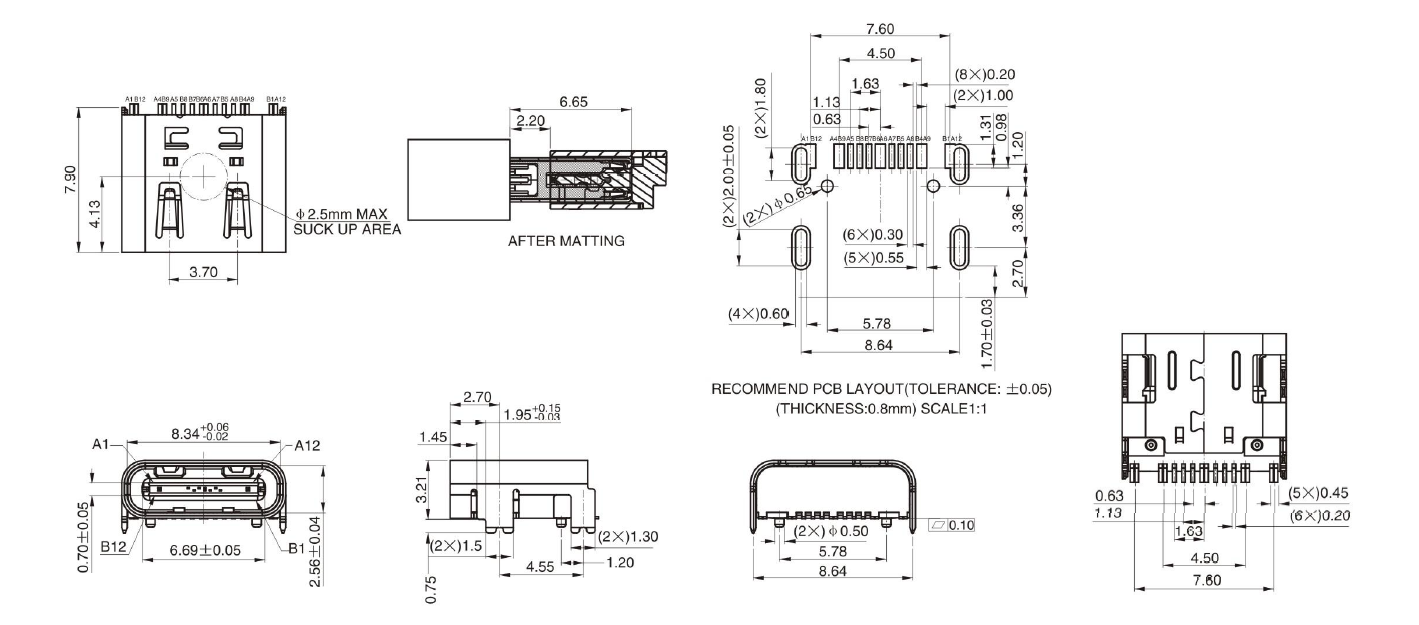

DIMENSIONS

Unit:mm

Model	Dimensions
TYPE-CF-W-16P-RAT-N

Unit:mm
