MULTI-FUNCTION SWITCH 多功能開關(guān)
Joystick potentiometer
TM-1106
操縱桿電位器
FEATURE
? 11.00mm*11.00mm
? Loop operation
? Wave soldering
APPLICATIONS
? Digital cameras, MP3|MP4, automobiles, health care products, robots and industrial machinery, game consoles, drones.
產(chǎn)品說明
COMMON SPECIFICATIONS
| Characteristics | Specification |
|---|
| 全阻值/Total resistance | 10KA |
|---|
| 額定功率/Rated power | 0.0125W |
|---|
| 工作電流/Working current | 50MA DC12V |
|---|
| 滑柄行程/Slide stroke | 2mm |
|---|
| 操作力距/Operating torque | 140±50gf |
|---|
| 壽命/life | 1000000 Times |
|---|

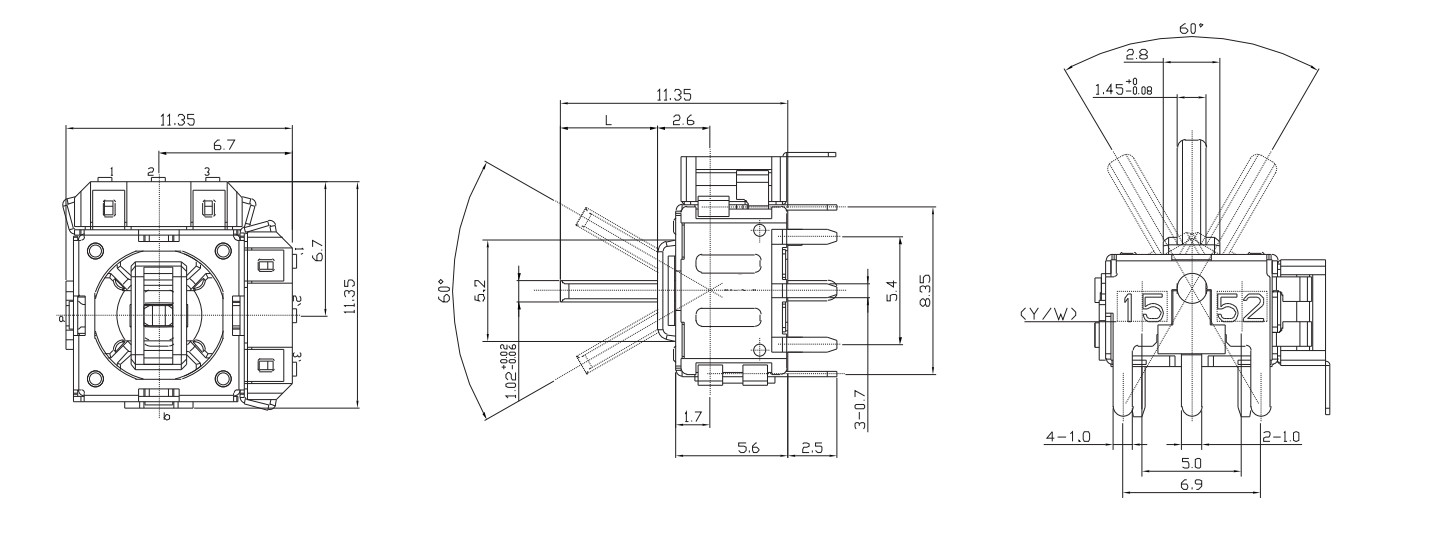

DIMENSIONS
Unit:mm
| Model | Dimensions |
|---|
TM-1106 |  |
