MULTI-FUNCTION SWITCH 多功能開關(guān)

Joystick potentiometer

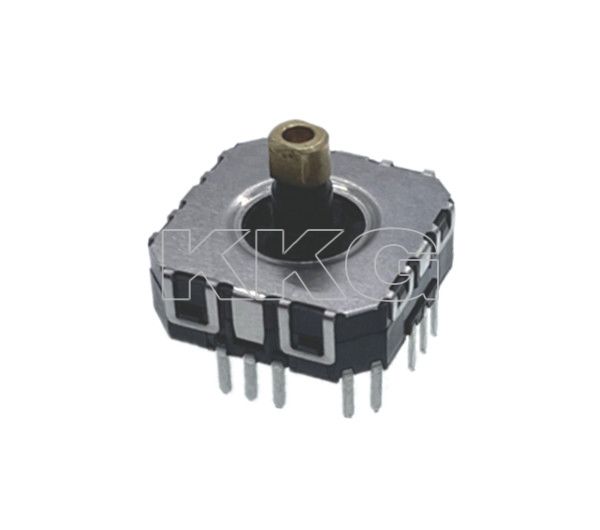

TM-1085A series

操縱桿電位器 FEATURE ? 17.50mm*17.50mm ? Slide on the 2D flat ? Integrated tact switch APPLICATIONS ? Digital cameras, MP3|MP4, automobiles, health care products, robots and industrial machinery, game consoles, drones.

檔案下載產(chǎn)品詢價

產(chǎn)品說明

COMMON SPECIFICATIONS

Characteristics	Specification
全阻值/Total resistance	5~100KA
額定功率/Rated power	0.0125W
工作電流/Working current	50MA DC12V
滑柄行程/Slide stroke	2mm
操作力距/Operating torque	120±50gf
壽命/life	1000000 Times

DIMENSIONS

Unit:mm

Model	Dimensions

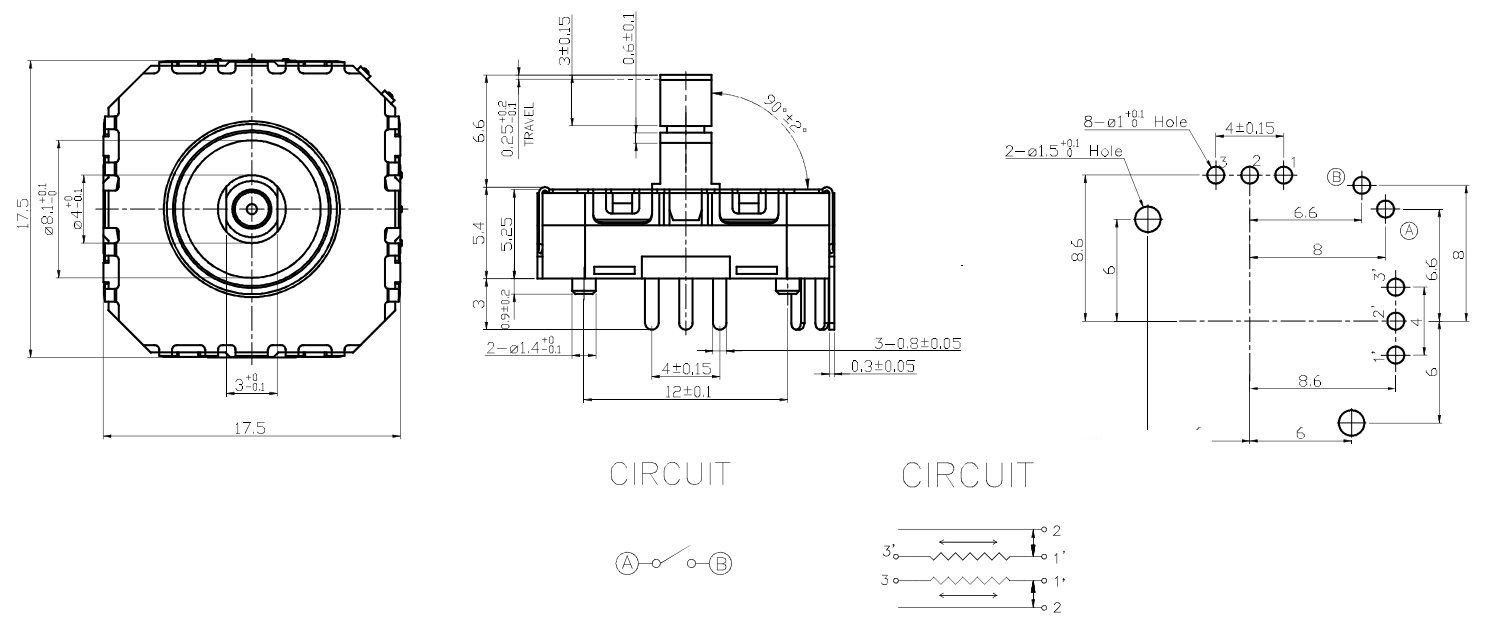

TM-1085A

Unit:mm

Model	Dimensions

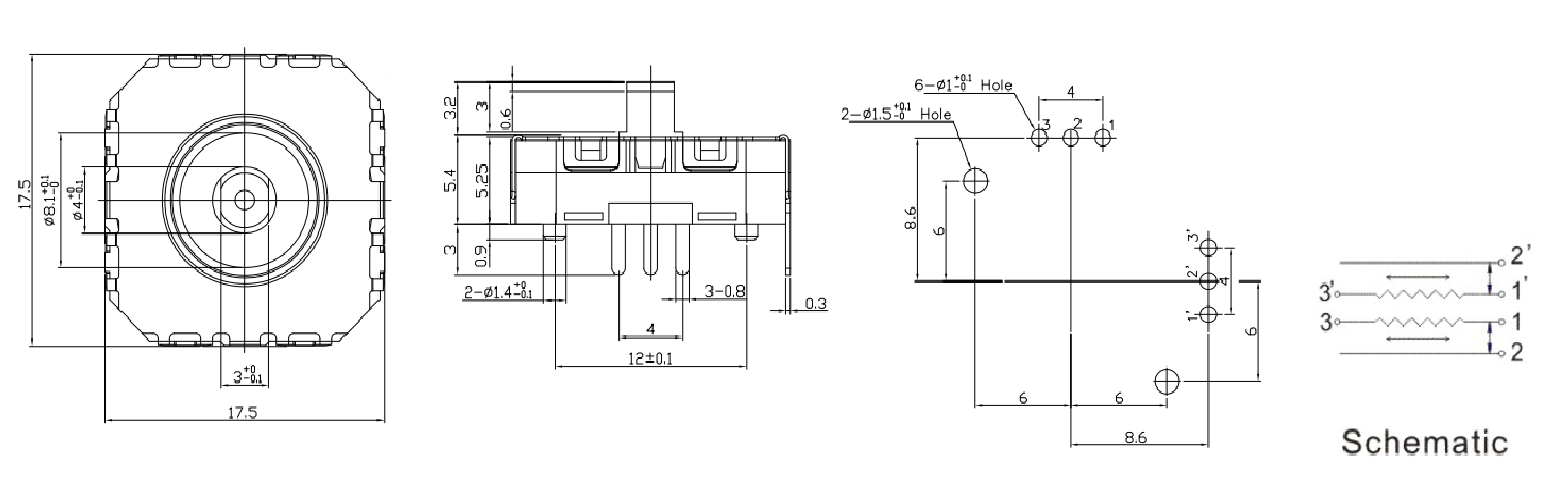

TM-1085A-B
