DIP SWITCH SERIES

DIP-DP series

撥碼開關 FEATURE ?Pitch 2.54mm ?Piano Type , Long Key ?2~10 , 12 positions APPLICATIONS ?Digital drama processing, communication, remote control and anti-theft, automatic alarm system, air shower room, model train

檔案下載產品詢價

DIP-DP

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
額定值/Rating	25mA 24V
引腳間距/PIN Pitch	2.54mm
操作力/Operation Force	400gf max
介電強度/Dielectric Strength	AC 500 V minute
絕緣電阻/Insulation Resistance	100 MΩ Mim 500V DC
接觸電阻/Contact Resistance	50MΩ
工作溫度/Operating Temperature	-25° ~ +70°
壽命/ Life	2,000

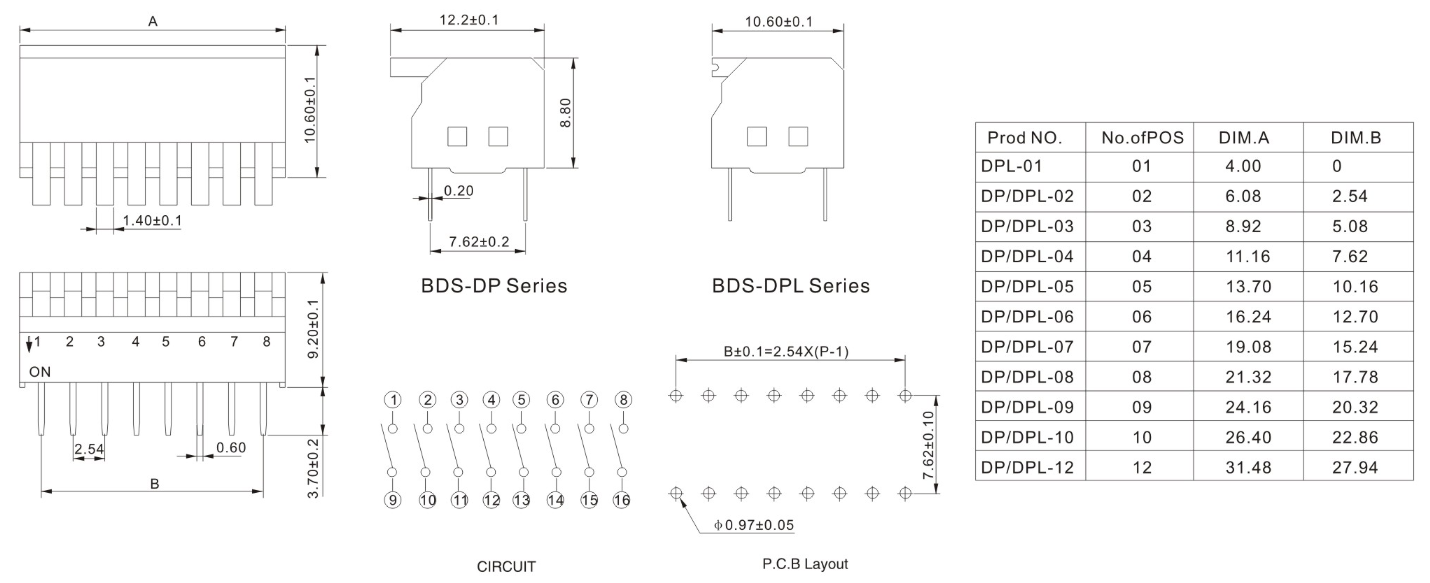

DIMENSIONS

Unit:mm

Model	Dimensions
DIP-DP

Model

Dimensions

DIP-DP DIP-DP series
