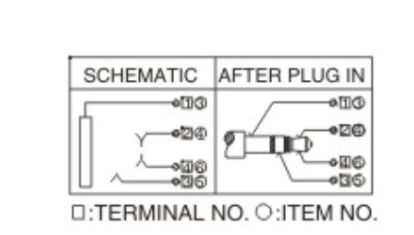

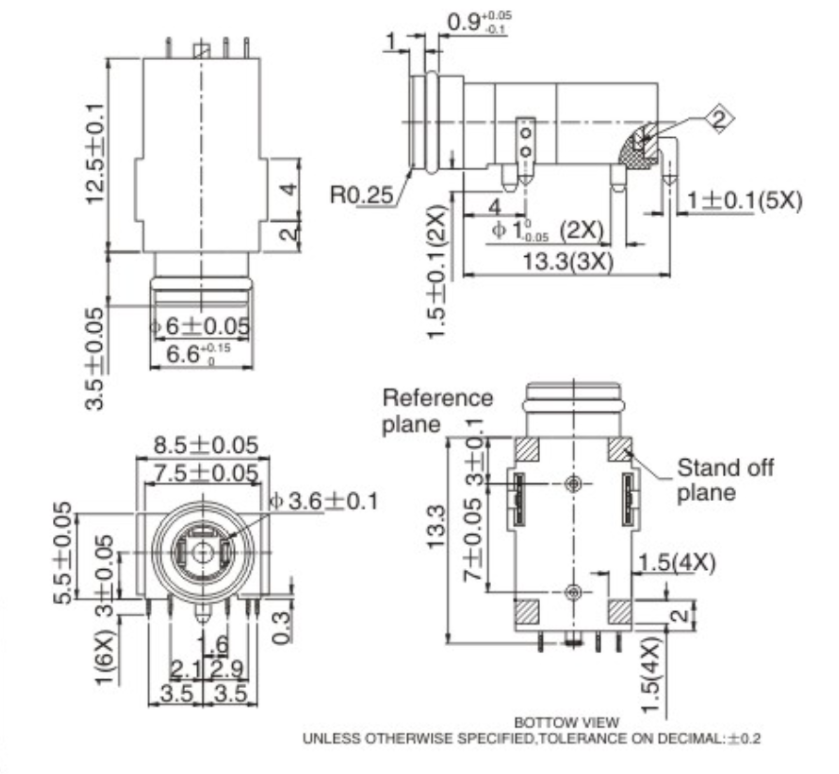

3.5 mm aperture DIP horizontal audio phone jack
PJ-9311
3.5mm孔徑/立式耳機(jī)插座
FEATURE
? 12.50mm*7.50mm
? Horizontal DIP
? Reflow soldering
APPLICATIONS
? Mainly used in the three-dimensional design of mobile phones, CD players, wireless phones, MP3 players, digital laptops, DVDs, digital cameras, etc...
