DIP SWITCH SERIES

DIP-DM series

撥碼開關 FEATURE ?Pitch 2.54mm ?Piano Type , Long Key ?1~10 , 12 positions APPLICATIONS ?Digital drama processing, communication, remote control and anti-theft, automatic alarm system, air shower room, model train

檔案下載產品詢價

DIP-DM

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
額定值/Rating	25mA 24V
引腳間距/PIN Pitch	2.54mm
操作力/Operation Force	1000gf max
介電強度/Dielectric Strength	AC 500 V minute
絕緣電阻/Insulation Resistance	100 MΩ Mim 500V DC
接觸電阻/Contact Resistance	50MΩ
工作溫度/Operating Temperature	-40° ~ +85°
壽命/ Life	2,000 Operations

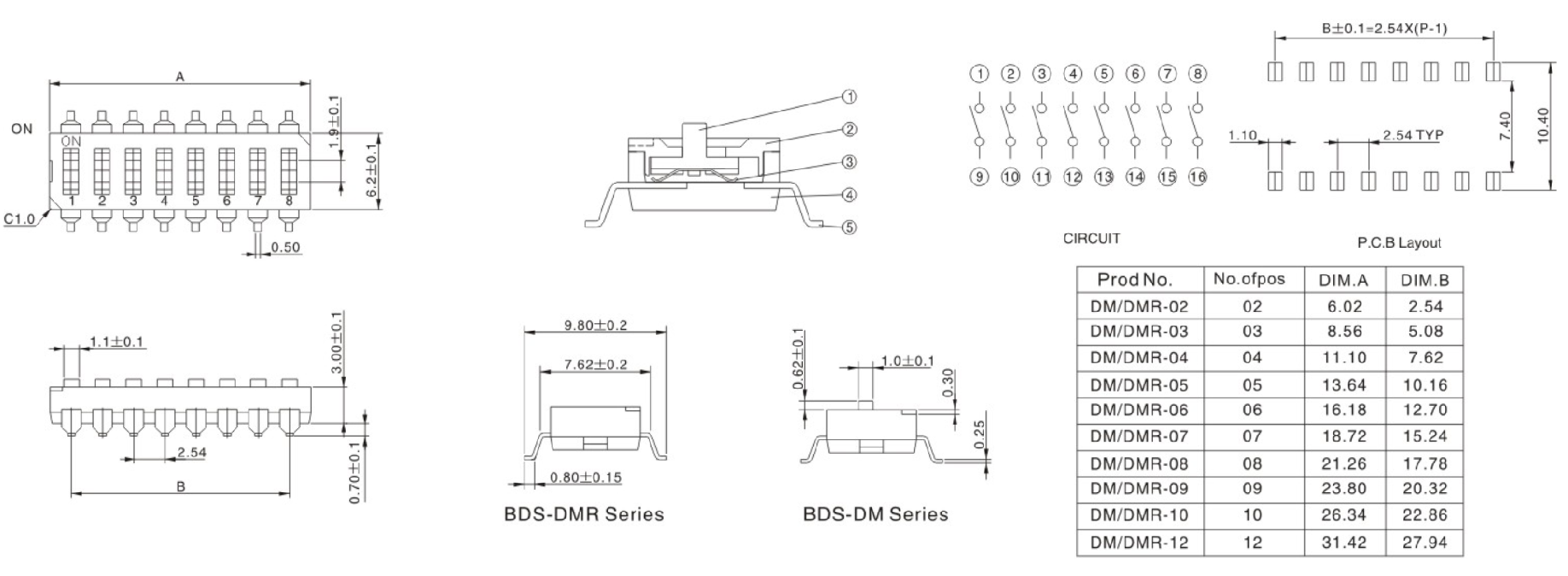

DIMENSIONS

Unit:mm

Model	Dimensions
DIP-DM
