DIP SWITCH SERIES
DIP-EPI series
撥碼開關
FEATURE
?Pitch 2.54mm
?Piano Type , Long Key
?2 , 4 , 6 , 8 , 10 positions
APPLICATIONS
?Digital drama processing, communication, remote control and anti-theft, automatic alarm system, air shower room, model train
產(chǎn)品說明
COMMON SPECIFICATIONS
| Characteristics | Specification |
|---|
| 額定值/Rating | 25mA 24V |
|---|
| 引腳間距/PIN Pitch | 2.54mm |
|---|
| 操作力/Operation Force | 800gf max |
|---|
| 介電強度/Dielectric Strength | AC 500 V minute |
|---|
| 絕緣電阻/Insulation Resistance | 100 MΩ Mim 500V DC |
|---|
| 接觸電阻/Contact Resistance | 50MΩ |
|---|
| 工作溫度/Operating Temperature | -40° ~ +85° |
|---|
壽命/ Life | 2,000 Operations |
|---|

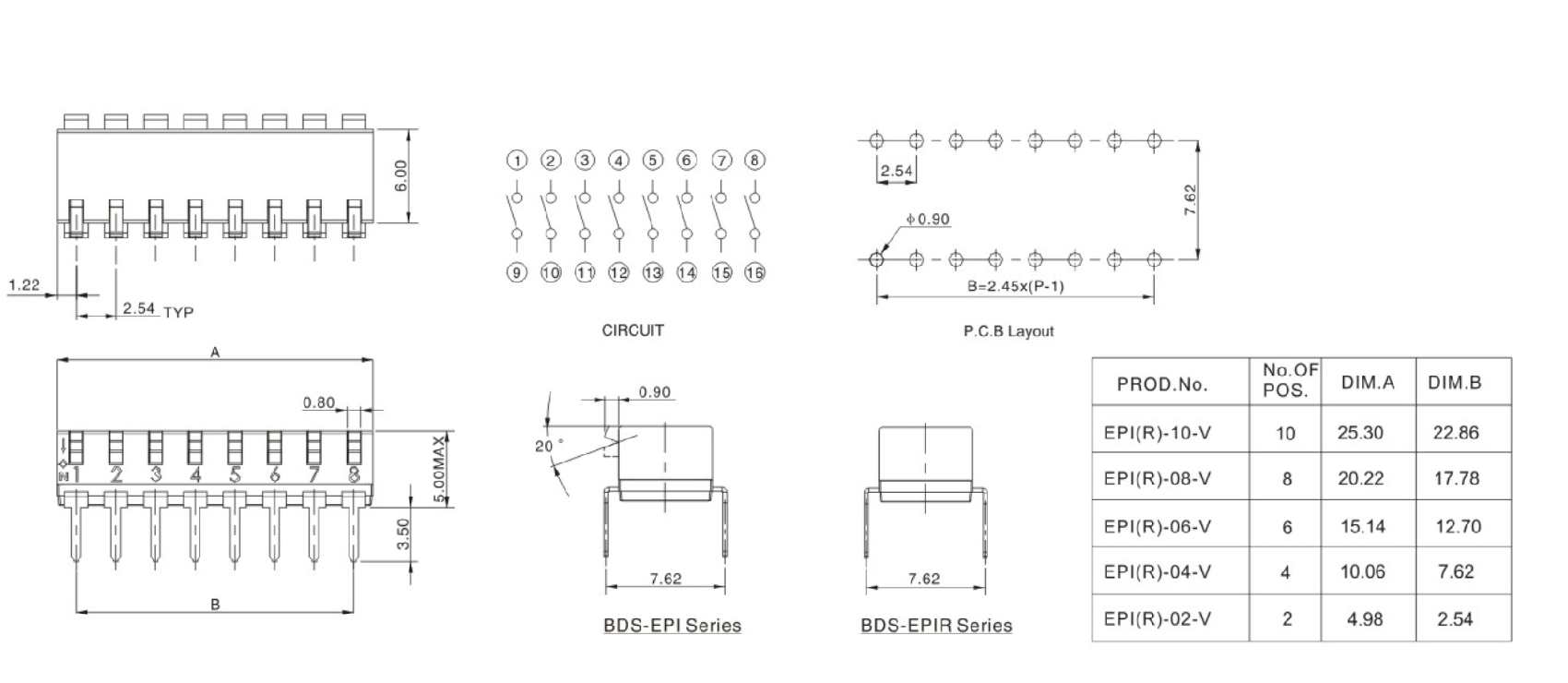

DIMENSIONS
Unit:mm
| Model | Dimensions |
|---|
DIP-EPI |  |

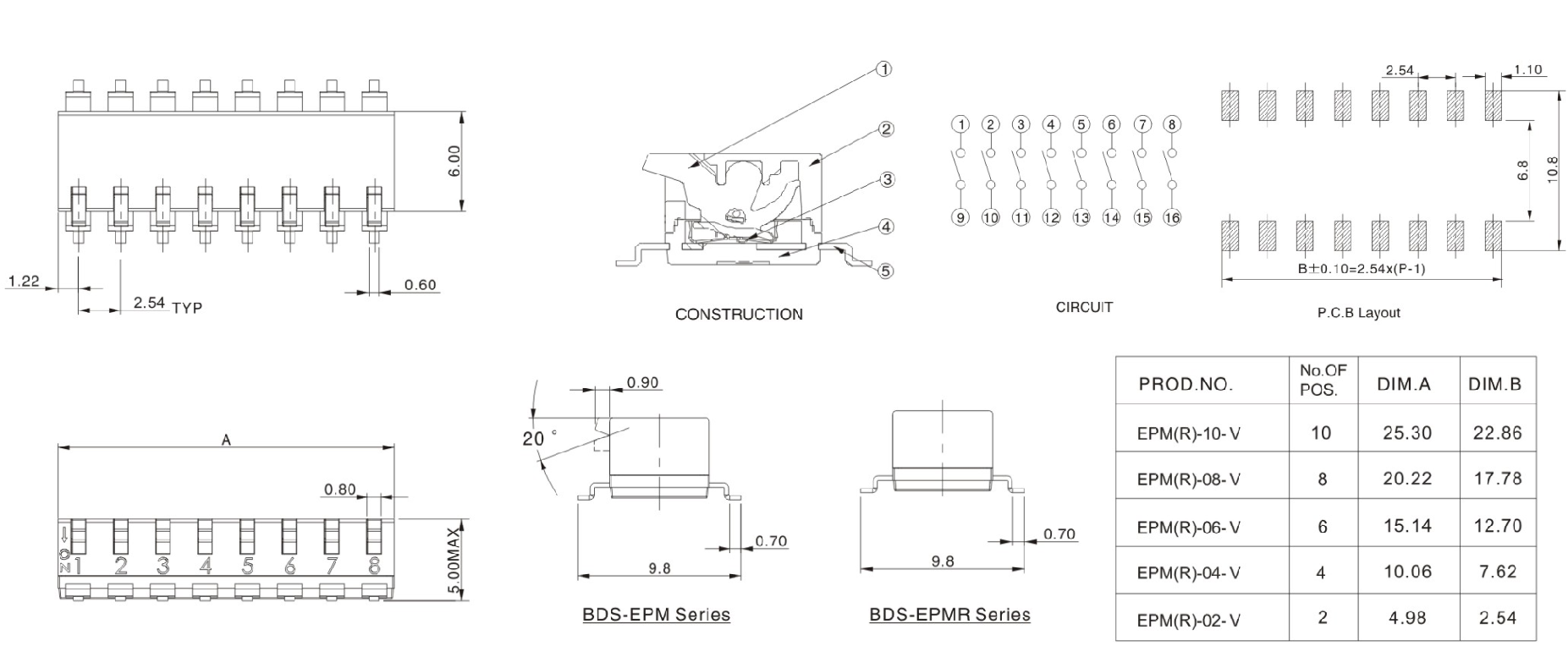

DIMENSIONS
Unit:mm
| Model | Dimensions |
|---|
DIP-EPIM |  |
