USB 2.0 /3.0 SOCKET TYPE-C
USB 3.1 TYPE-C
TYPE-CF-24P-OT0.8
TYPE-CF-24P-OT0.8
FEATURE
? 8.94mm*7.90mm
? 90 degrees SMD
? Reflow soldering
APPLICATIONS
? Used in mobile, audio-visual, automotive electronics, multimedia, electrical appliances, Electronic toys visible interphone MP3, MP4, DVD
產(chǎn)品說明
COMMON SPECIFICATIONS
| Characteristics | Specification |
|---|
| 額定電流/Current Rating | 5.0A MAX |
|---|
| 額定電壓/Voltage Rating | 100VAC |
|---|
| 接觸電阻/Contact Resistance | 40 millionhm max |
|---|
| 尺寸/Dimension | 8.94mm*7.90mm |
|---|
| 溫度/temperature range | -30℃~85℃ |
|---|
| 絕緣電阻/Insulation Resistance | 100 megohms min |
|---|

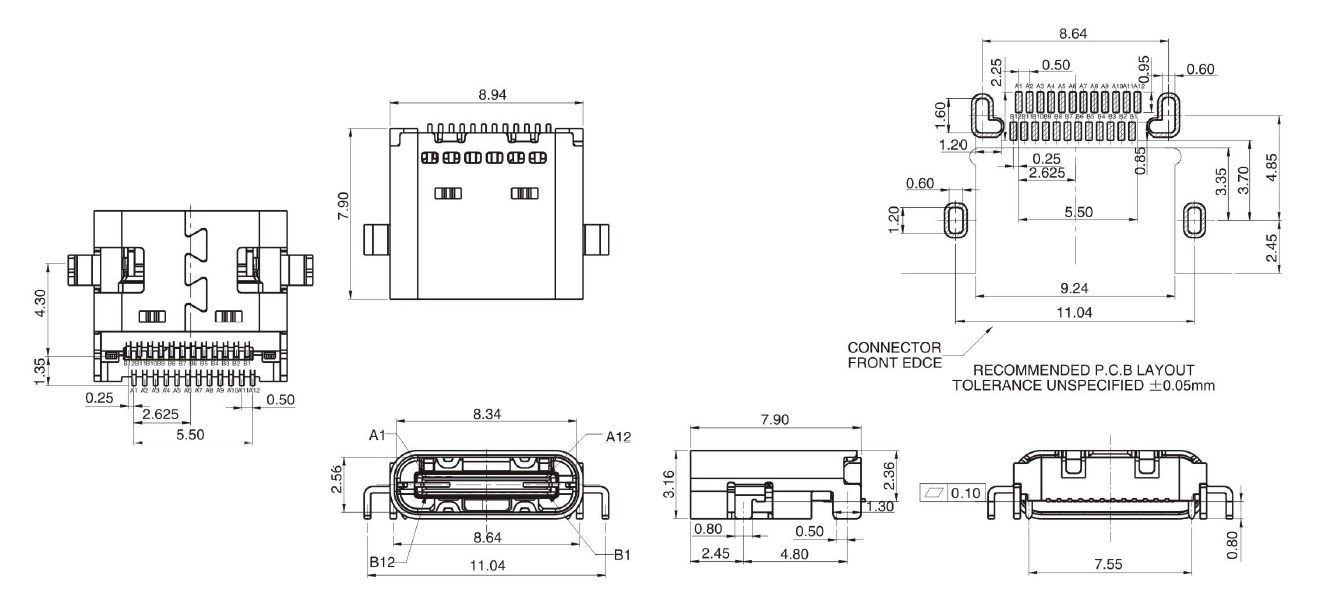

DIMENSIONS
Unit:mm
| Model | Dimensions |
|---|
TYPE-CF-24P-OT0.8 |  |
Unit:mm
Unit:mm
