USB 2.0 /3.0 SOCKET TYPE-C

USB 3.1 TYPE-C

TYPE-CF-24P-OT0.8-S1

TYPE-CF-24P-OT0.8-S1 FEATURE ? 10.45mm*8.64mm ? 180 degrees DIP ? Reflow soldering APPLICATIONS ? Used in mobile, audio-visual, automotive electronics, multimedia, electrical appliances, Electronic toys visible interphone MP3, MP4, DVD

檔案下載產品詢價

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
額定電流/Current Rating	5.0A MAX
額定電壓/Voltage Rating	100VAC
接觸電阻/Contact Resistance	40 millionhm max
尺寸/Dimension	10.45mm*8.64mm
溫度/temperature range	-30℃~85℃
絕緣電阻/Insulation Resistance	100 megohms min

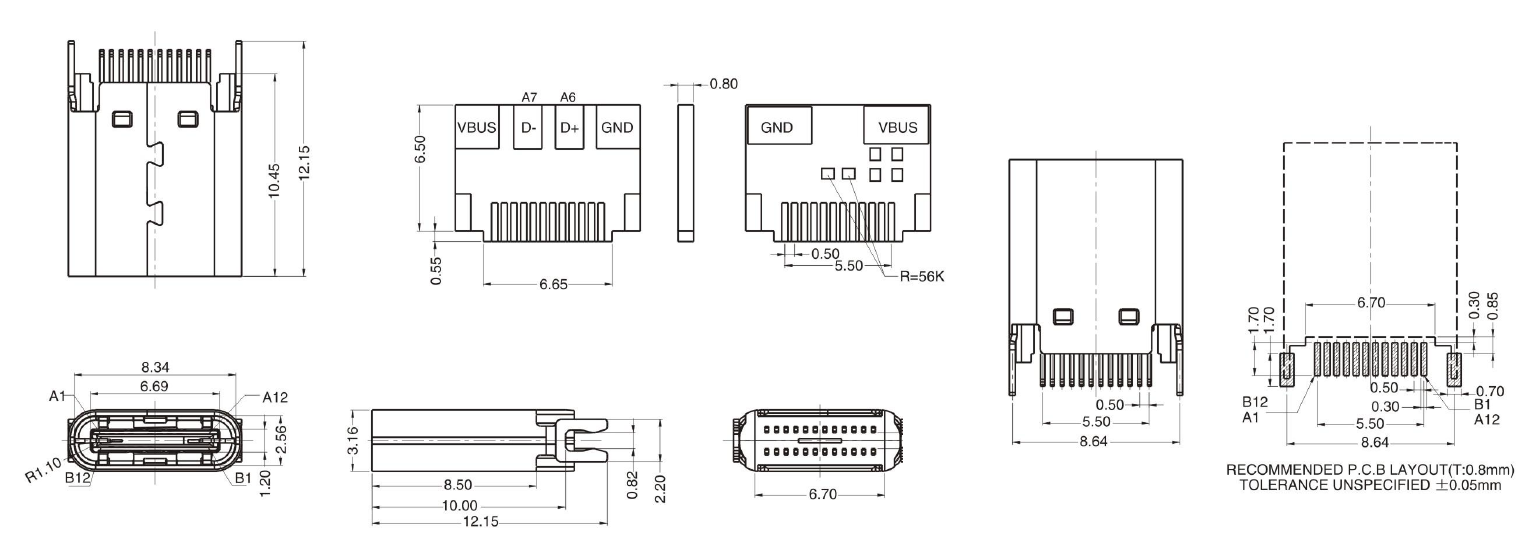

DIMENSIONS

Unit:mm

Model	Dimensions
TYPE-CF-24P-OT0.8-S1

Unit:mm
