USB 2.0 /3.0 SOCKET TYPE-C

USB 3.1 TYPE-C

TYPE-CF-24P-PT0.8-S1-L9.3

TYPE-CF-24P-PT0.8-S1-L9.3 FEATURE ? 9.30mm*8.64mm ? 180 degrees DIP ? Reflow soldering APPLICATIONS ? Used in mobile, audio-visual, automotive electronics, multimedia, electrical appliances, Electronic toys visible interphone MP3, MP4, DVD

檔案下載產(chǎn)品詢價(jià)

產(chǎn)品說明

COMMON SPECIFICATIONS

Characteristics	Specification
額定電流/Current Rating	5.0A MAX
額定電壓/Voltage Rating	100VAC
接觸電阻/Contact Resistance	40 millionhm max
尺寸/Dimension	9.30mm*8.64mm
溫度/temperature range	-30℃~85℃
絕緣電阻/Insulation Resistance	100 megohms min

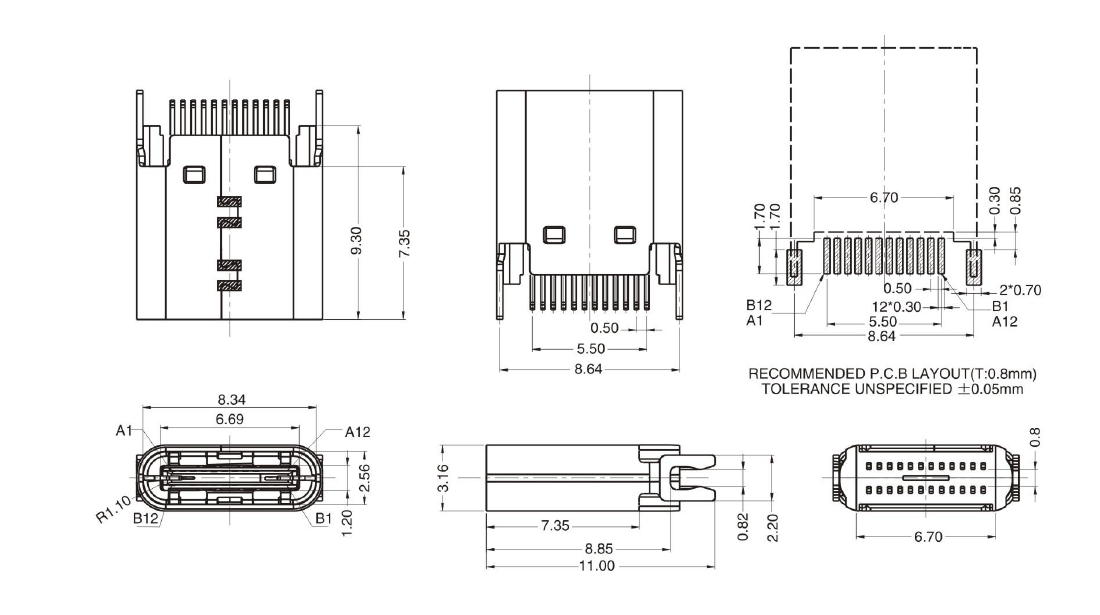

DIMENSIONS

Unit:mm

Model	Dimensions
TYPE-CF-24P-PT0.8-S1-L9.3

Unit:mm
