USB 2.0 /3.0 SOCKET TYPE-C

USB 3.1 TYPE-C

TYPE-CF-14P-FT

TYPE-CF-14P-FT FEATURE ? 3.16mm*8.34mm ? 90 degrees DIP ? Reflow soldering APPLICATIONS ? Used in mobile, audio-visual, automotive electronics, multimedia, electrical appliances, Electronic toys visible interphone MP3, MP4, DVD

檔案下載產(chǎn)品詢價

產(chǎn)品說明

COMMON SPECIFICATIONS

Characteristics	Specification
額定電流/Current Rating	5.0A MAX
額定電壓/Voltage Rating	100VAC
接觸電阻/Contact Resistance	40 millionhm max
尺寸/Dimension	3.16mm*8.34mm
溫度/temperature range	-30℃~85℃
絕緣電阻/Insulation Resistance	100 megohms min

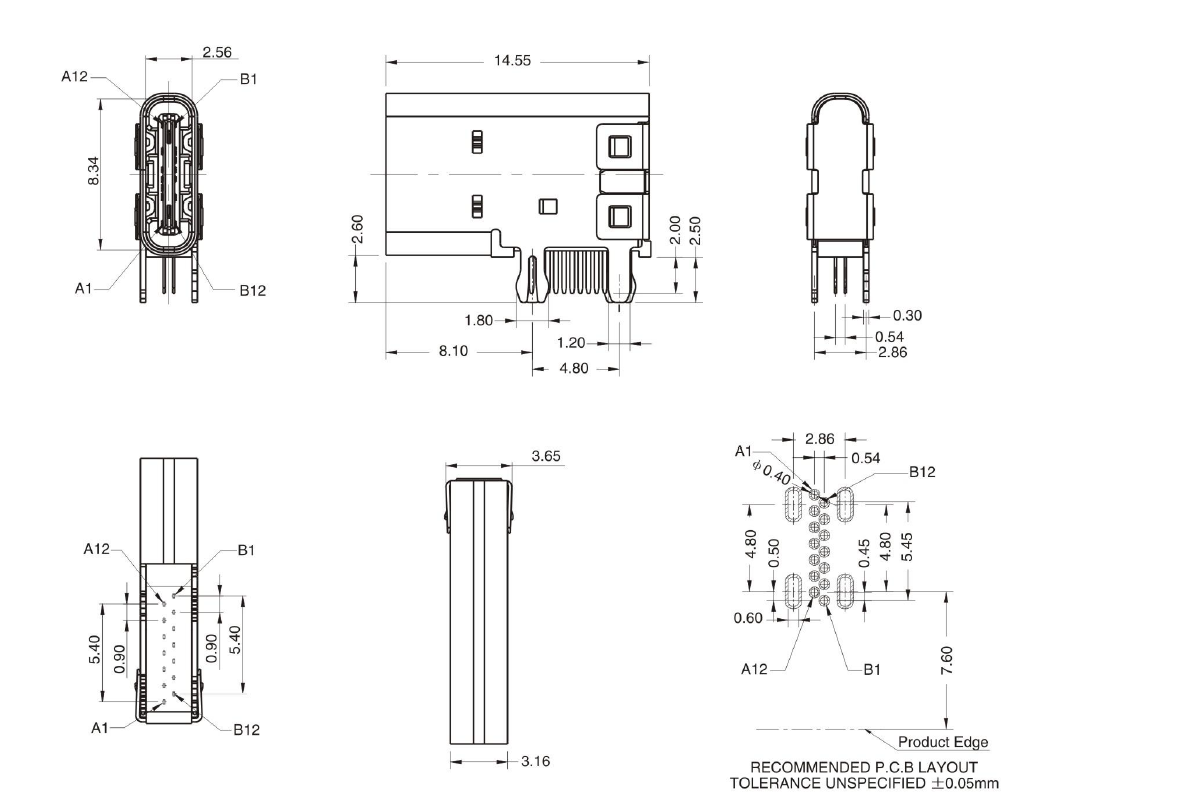

DIMENSIONS

Unit:mm

Model	Dimensions
TYPE-CF-14P-FT

Unit:mm
