USB 2.0 /3.0 SOCKET TYPE-C

USB 3.1 TYPE-C 公頭

TYPE-CM-24P-RAT

USB 3.1 TYPE-C 公頭 FEATURE ? 8.25mm*13.75mm ? 90 degrees SMD ? Reflow soldering APPLICATIONS ? Used in mobile, audio-visual, automotive electronics, multimedia, electrical appliances, Electronic toys visible interphone MP3, MP4, DVD

檔案下載產(chǎn)品詢價(jià)

產(chǎn)品說明

COMMON SPECIFICATIONS

Characteristics	Specification
額定電流/Current Rating	5.0A MAX
額定電壓/Voltage Rating	100VAC
接觸電阻/Contact Resistance	40 millionhm max
尺寸/Dimension	8.25mm*13.75mm
溫度/temperature range	-30℃~85℃
絕緣電阻/Insulation Resistance	100 megohms min

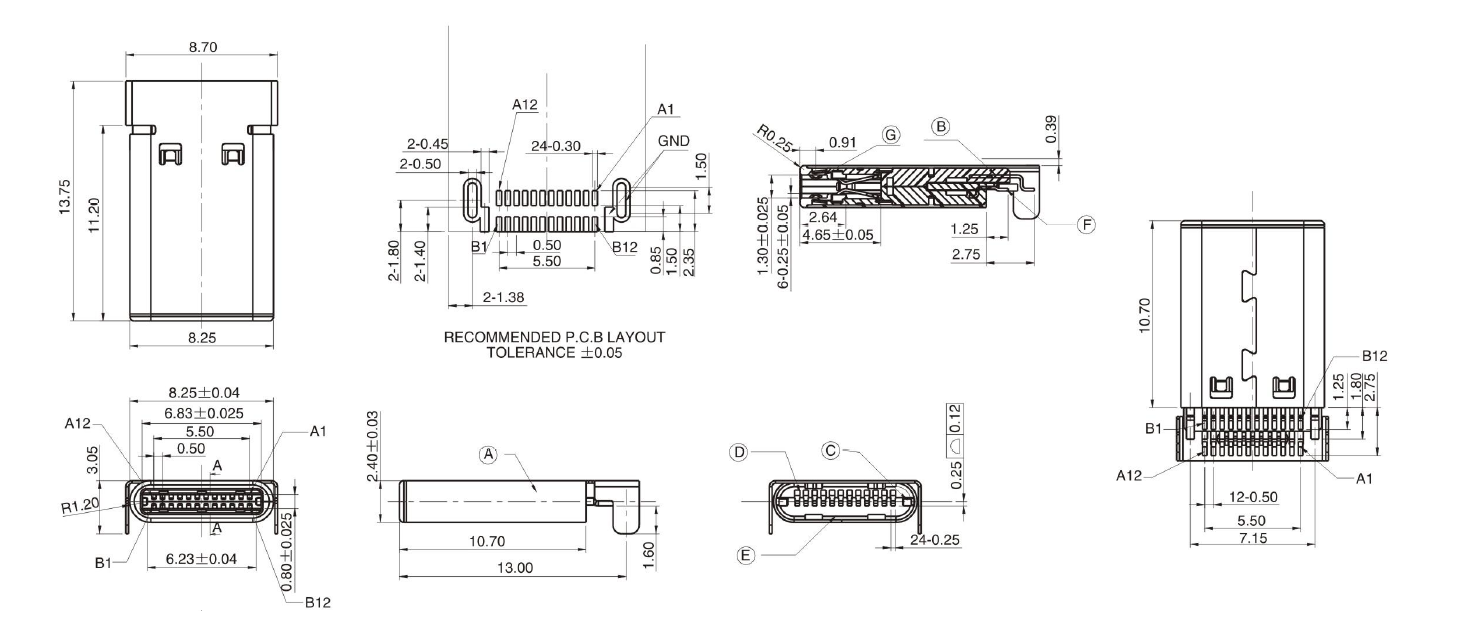

DIMENSIONS

Unit:mm

Model	Dimensions
TYPE-CM-24P-RAT

Unit:mm
