?6.35耳機插座

6.35 mm aperture DIP horizontal audio phone jack

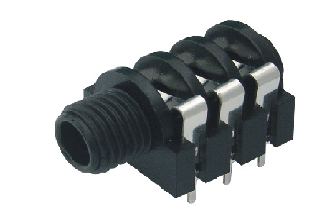

PJ-6309

6.35mm孔徑/插件式耳機插座 FEATURE ? 34.00mm*20.00mm ? Horizontal DIP ? Reflow soldering APPLICATIONS ? Mainly used in the three-dimensional design of mobile phones, CD players, wireless phones, MP3 players, digital laptops, DVDs, digital cameras, etc...

檔案下載產品詢價

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
電氣額定值/Rating	0.5A，30V
操作力/Operating Force	3~30N
尺寸/Dimension	34.00mm*20.00mm
電氣壽命/Electrical Life	5,000 Cycles Min
絕緣強度/Dielectric Strength	AC500V
接觸電阻/Contact Resistance	50mΩ Max

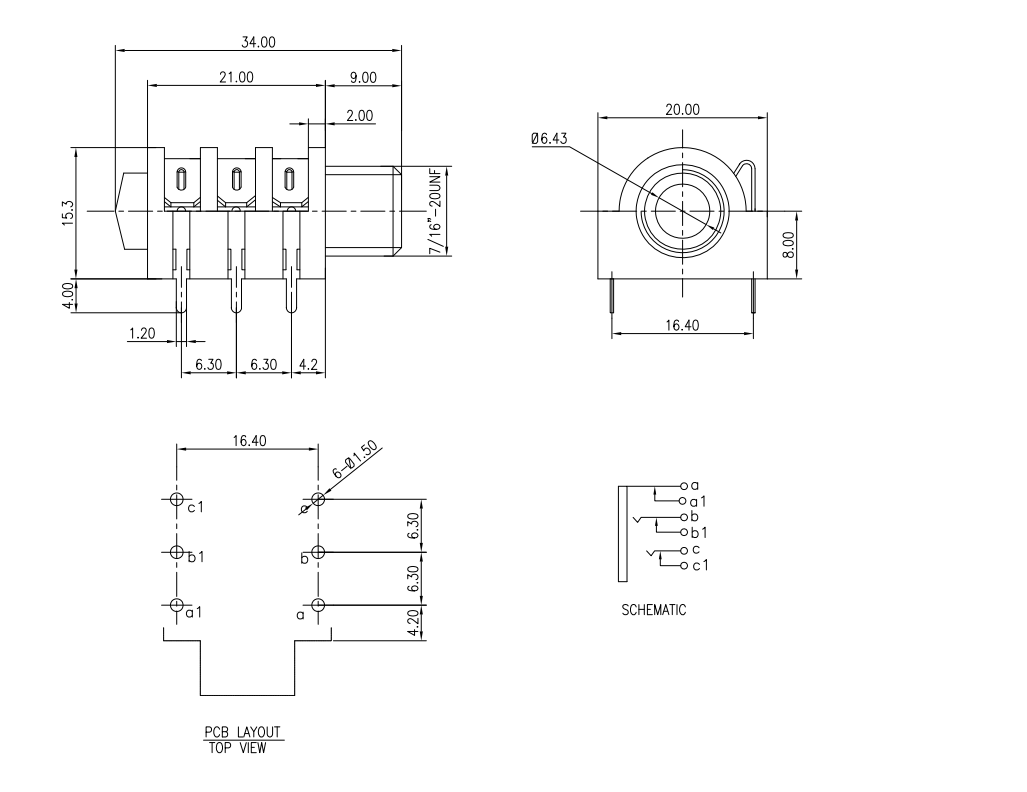

DIMENSIONS

Model	Dimensions
PJ-6309
