       ROCKER SWITCH 翹板開關


























        PR-2115-D series













       Multi-position rocker power switch


      PR-2115-D series

      翹板開關

FEATURE
? 21.00mm*15.00mm
? 2 gears
? Single row of feet

APPLICATIONS
? Low-voltage electrical appliances, household appliances, instruments, electronic toys, drinking fountains










      產(chǎn)品說明


      COMMON SPECIFICATIONS

      CharacteristicsSpecification
      電流/Current6A 125VAC/3A 250VAC
      接觸電阻/Contact Resistance35MAX
      操作溫度/Operating temperature-25℃+85℃
      絕緣電阻/Insulation resistance500VDC 100MAX min
      耐電壓/Withstand voltage1500VAC 1min
      電器壽命/Electrical life10,000cycles

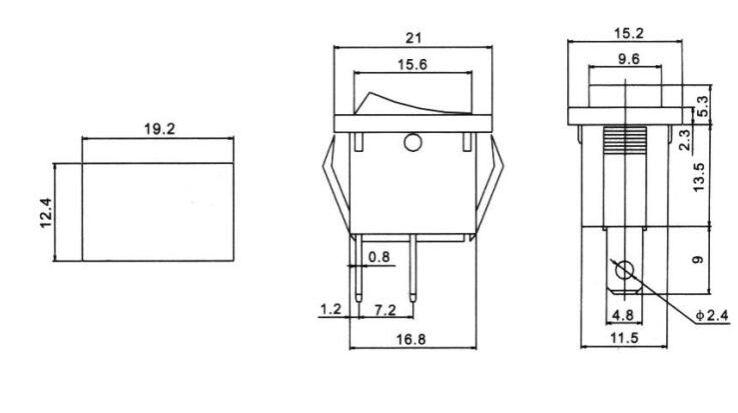

      DIMENSIONS

      ModelDimensions
      PR-2115-D-01PR-2115-D series
      PR-2115-D series

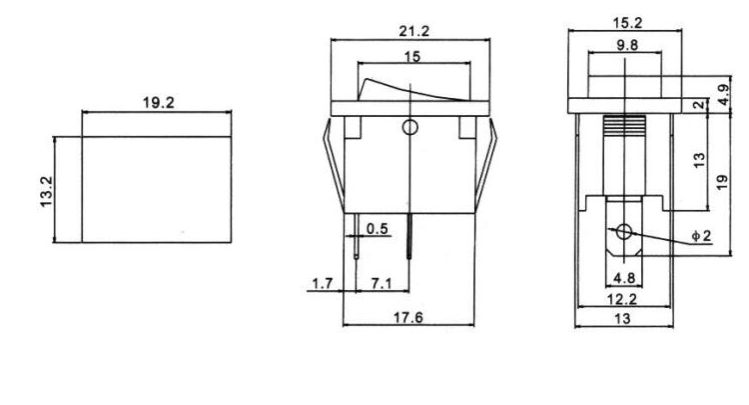

      DIMENSIONS

      ModelDimensions
      PR-2115-D-02PR-2115-D series
      PR-2115-D series

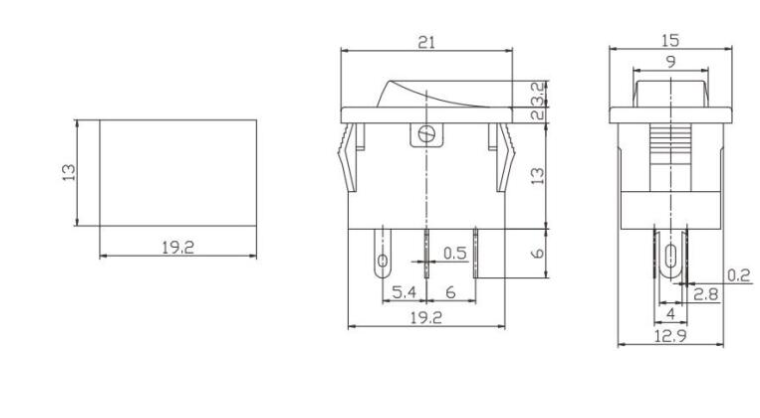

      DIMENSIONS
      ModelDimensions
      PR-2115-D-03PR-2115-D series
      PR-2115-D series
      DIMENSIONS
      ModelDimensions
      PR-2115-D-04PR-2115-D series
      PR-2115-D series
      DIMENSIONS
      ModelDimensions
      PR-2115-D-05PR-2115-D series
      PR-2115-D series
