       ROCKER SWITCH 翹板開關


























        PR-2124-A series













       Multi-position rocker power switch


      PR-2124-A series

      翹板開關

FEATURE
? 21.00mm*24.00mm
? 2-3 gears
? Double row of feet

APPLICATIONS
? Low-voltage electrical appliances, household appliances, instruments, electronic toys, drinking fountains










      產品說明


      COMMON SPECIFICATIONS

      CharacteristicsSpecification
      電流/Current6A 125VAC/3A 250VAC
      接觸電阻/Contact Resistance35MAX
      操作溫度/Operating temperature-25℃+85℃
      絕緣電阻/Insulation resistance500VDC 100MAX min
      耐電壓/Withstand voltage1500VAC 1min
      電器壽命/Electrical life10,000cycles

      DIMENSIONS

      ModelDimensions

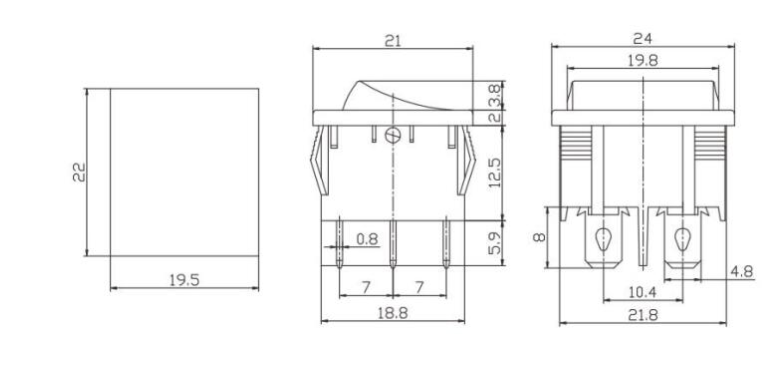

      PR-2124-A-01PR-2124-A series
      PR-2124-A series


      DIMENSIONS

      ModelDimensions

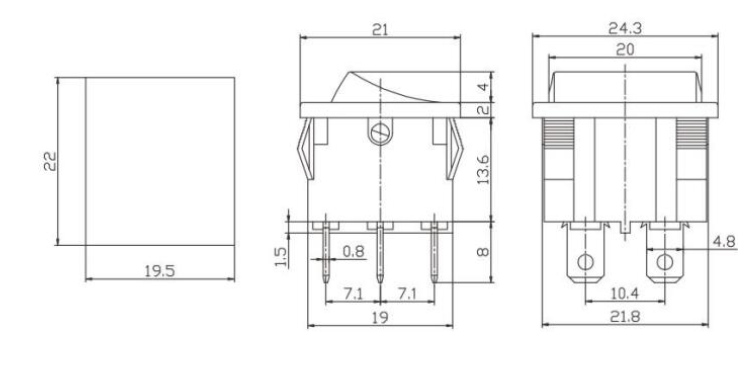

      PR-2124-A-02PR-2124-A series
      PR-2124-A series


      DIMENSIONS
      ModelDimensions

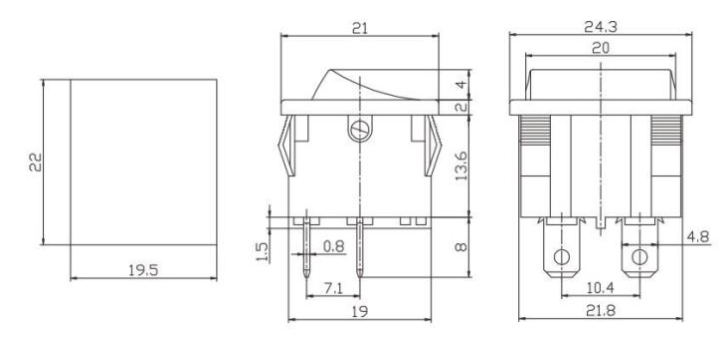

      PR-2124-A-03PR-2124-A series
      PR-2124-A series
