PR-3315 series

翹板開關 FEATURE ? 33.60mm*15.50mm ? 2 gears ? Single row of feet APPLICATIONS ? Low-voltage electrical appliances, household appliances, instruments, electronic toys, drinking fountains

檔案下載產品詢價

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
電流/Current	20A 125VAC/15A 250VAC
接觸電阻/Contact Resistance	35MAX
操作溫度/Operating temperature	-25℃+85℃
絕緣電阻/Insulation resistance	500VDC 100MAX min
耐電壓/Withstand voltage	1500VAC 1min
電器壽命/Electrical life	10,000cycles

DIMENSIONS

Model	Dimensions

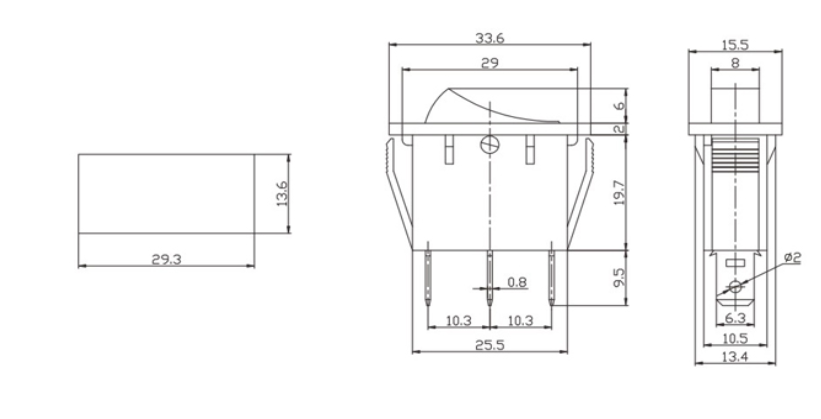

PR-3315-01

DIMENSIONS

Model	Dimensions

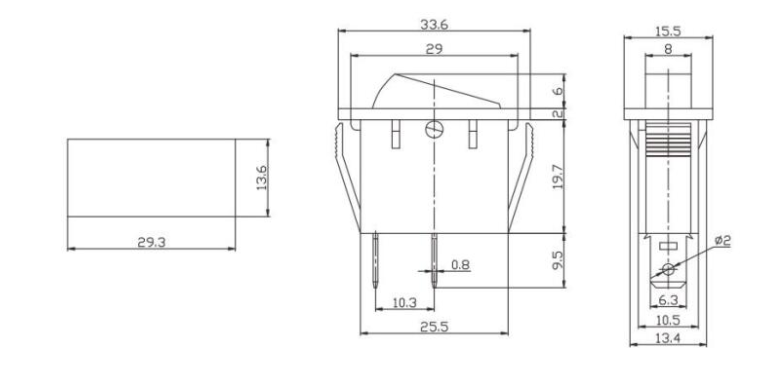

PR-3315-02

DIMENSIONS

Model	Dimensions

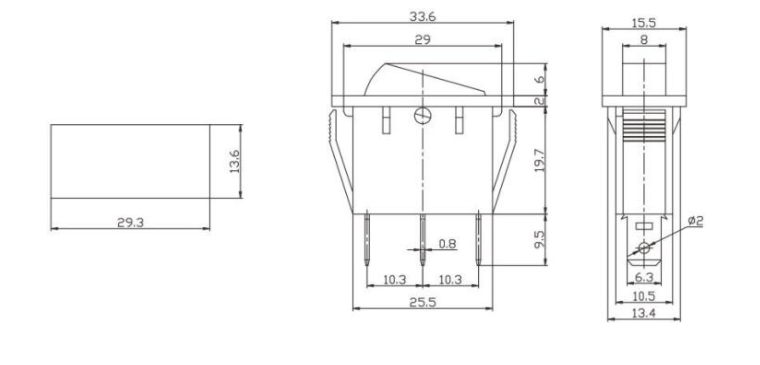

PR-3315-03

DIMENSIONS

Model	Dimensions

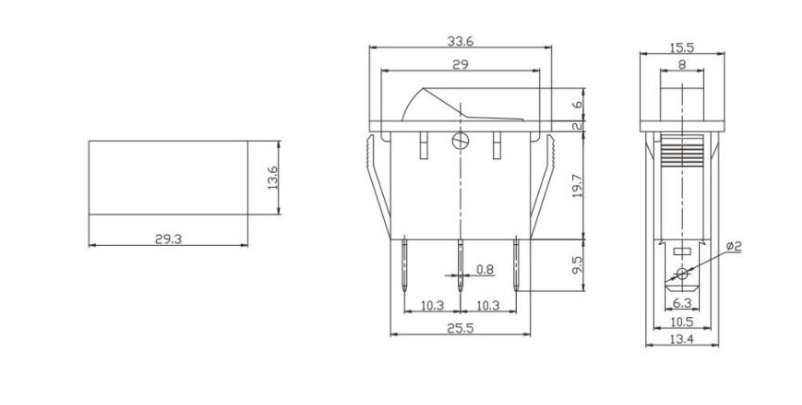

PR-3315-04

DIMENSIONS

Model	Dimensions

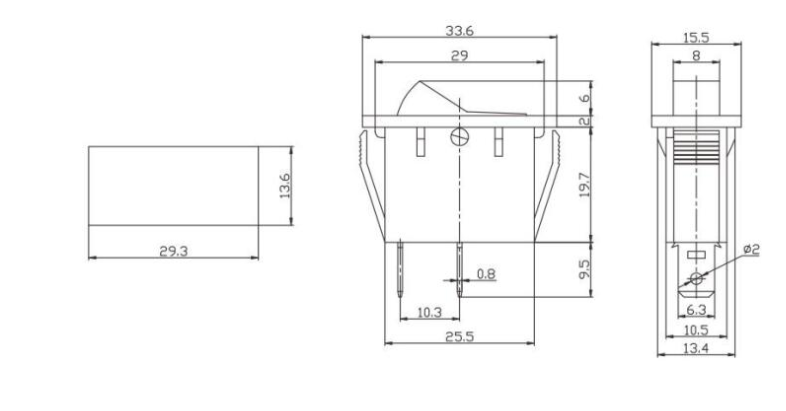

PR-3315-05

DIMENSIONS

Model	Dimensions

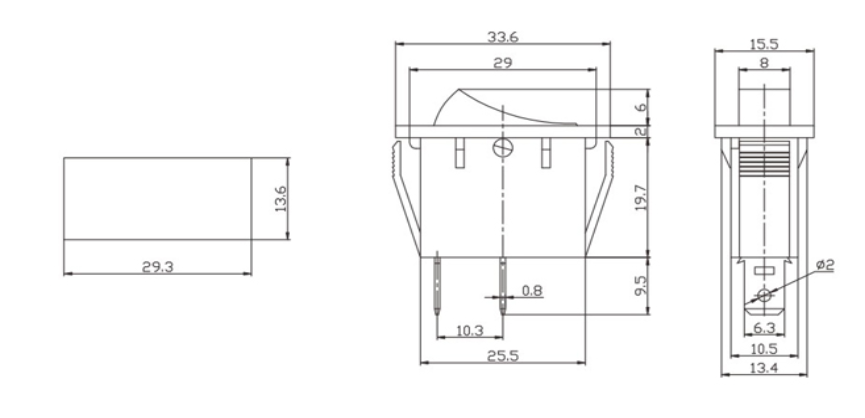

PR-3315-06
