PR-3214 series

翹板開關 FEATURE ? 32.00mm*14.00mm ? 2 gears ? Single row of feet APPLICATIONS ? Low-voltage electrical appliances, household appliances, instruments, electronic toys, drinking fountains

檔案下載產品詢價

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
電流/Current	20A 125VAC/15A 250VAC
接觸電阻/Contact Resistance	35MAX
操作溫度/Operating temperature	-25℃+85℃
絕緣電阻/Insulation resistance	500VDC 100MAX min
耐電壓/Withstand voltage	1500VAC 1min
電器壽命/Electrical life	10,000cycles

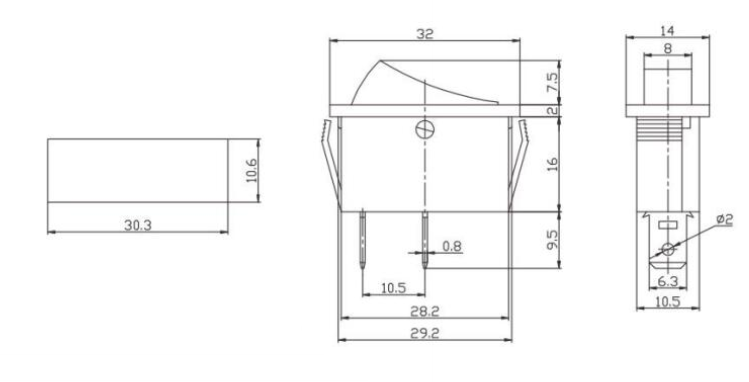

DIMENSIONS

Model	Dimensions
PR-3214-01

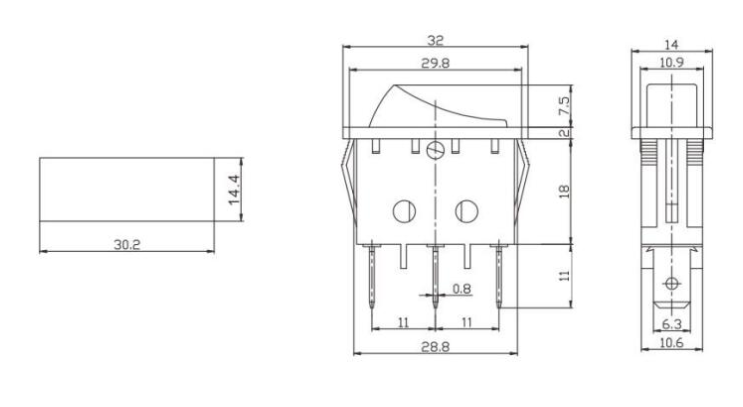

DIMENSIONS

Model	Dimensions
PR-3214-02

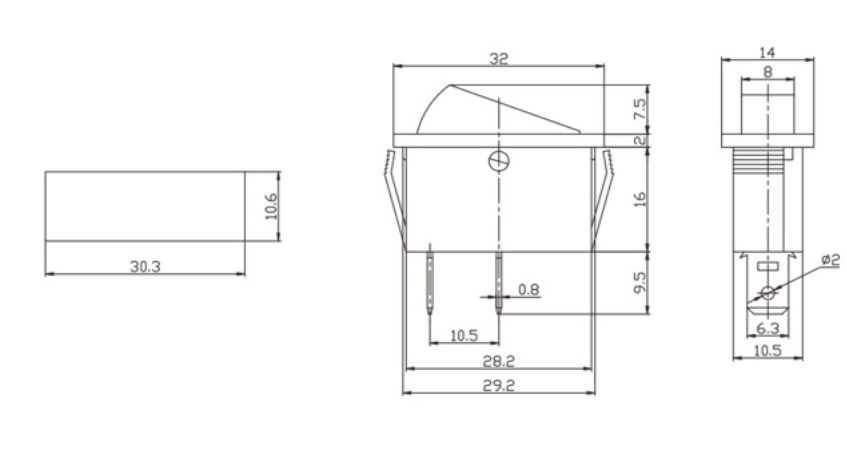

DIMENSIONS

Model	Dimensions
PR-3214-03

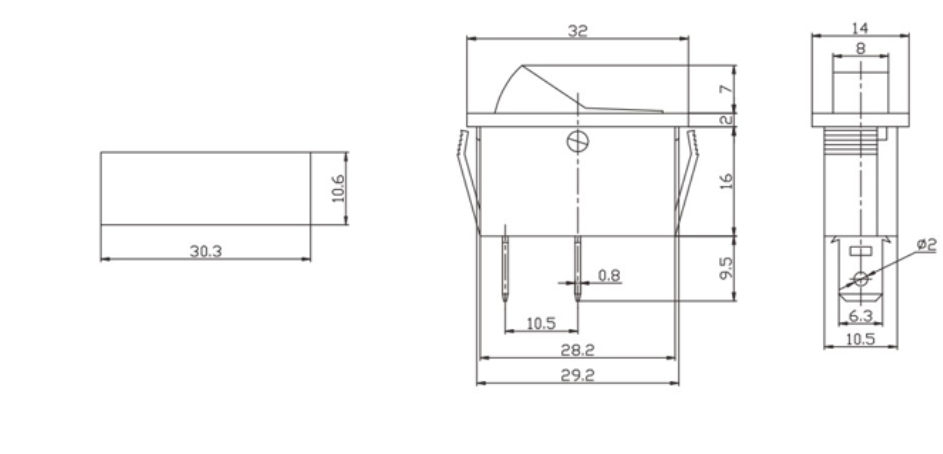

DIMENSIONS

Model	Dimensions
PR-3214-04

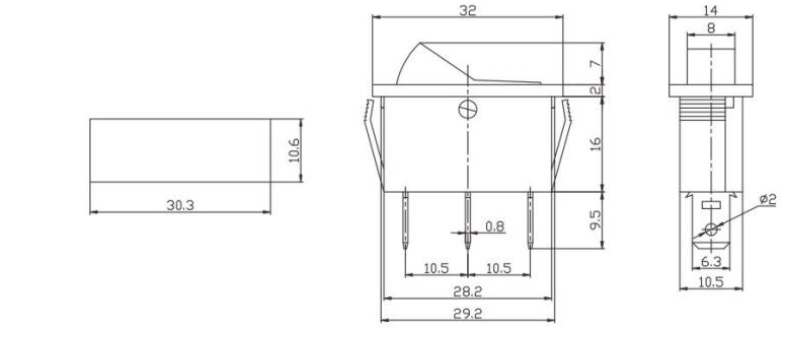

DIMENSIONS

Model	Dimensions
PR-3214-05

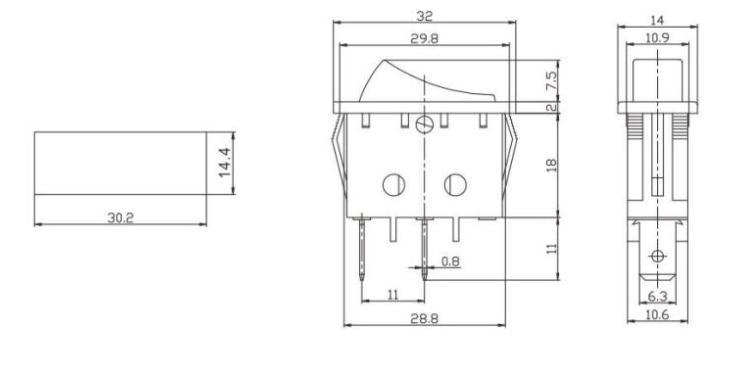

DIMENSIONS

Model	Dimensions
PR-3214-06

DIMENSIONS

Model	Dimensions
PR-3214-07

DIMENSIONS

Model	Dimensions
PR-3214-08

DIMENSIONS

Model	Dimensions
PR-3214-09
